The Triangles

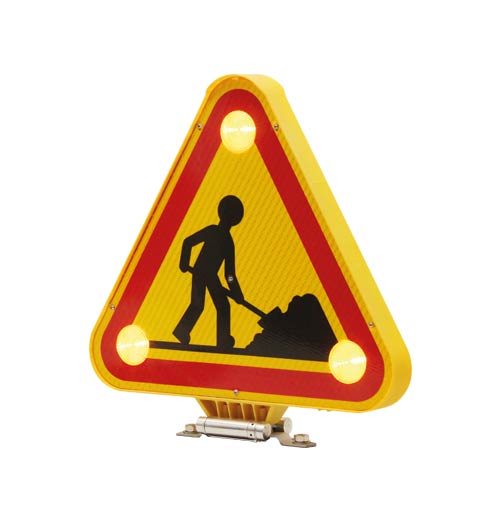

TRIANGLE LED 500 - CLASS 2

Ref : 1566

TRIANGLE LED 500 - CLASS 2
General information
The anodized aluminum casing is made up of two AK5 500 mm class 2 panels assembled back to back.
It is mounted on a double-acting hinge which allows the triangle to tilt forwards or backwards.
It is supplied with a 10 meter power cable.

The triangle is made up of three extra flat Ø 72 mm optics on each side.
Each light has 12 yellow leds of high light intensity and is protected by a magnifying lens.

The lifespan of a led is more than 100,000 hours.

The triangle is in dual voltage, it can be supplied with 12 volts as well as 24 volts without changing the lights.
Technical specifications
Operating Mode Rotating light
Power supply 12/24-Volt dual-voltage
Autonomy 348 mA
Protection IP 44
Weight 4,1 Kg
Size (L x l x h) 481 x 112 x 500 mm
Options Class 2, another symbols
