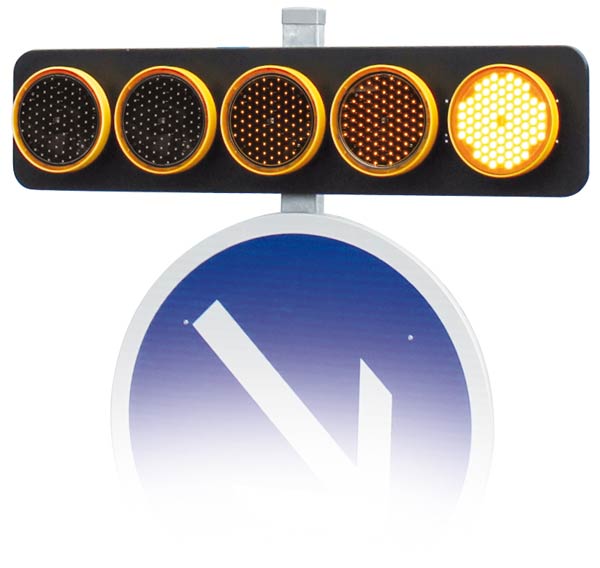

Scrolling lighting bar 5 optics yellow Ø 200 to 80 LEDs KR41

Ref : 1547

General information

fabrication francaise

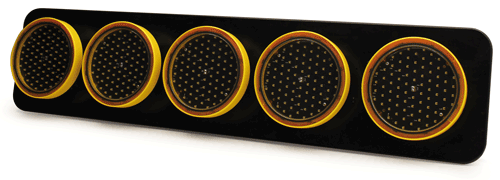

The 5 optical bar is made up of a matt black BTR aluminum sheet measuring 1300 x 300 mm which serves as a contrast screen and 5 scrolling optics Ø 200 mm each composed of 80 LEDS.
The 5 light bar is equipped with a 3 meter cable with an XLR plug.*

Complies with regulations.

5 optics Ø 200 comprising 80 yellow LEDs of high light intensity.
3 modes (left / right / flashing) managed by switch.
Fixing by 2 rails on the back.

Technical specifications

Approved sheet metal:

This 5 optical scrolling bar is made of an approved BTR (Fallen Edges) aluminum sheet.

Protected LEDs:

Each optic is equipped with a polycarbonate lens, protecting the LEDs from impacts. The IP65 protection rating guarantees adequate protection against humidity and dust.

Low consumption / high light impact:

With its 100% LED optics and its electronics designed to minimize consumption, the 5-optics scrolling bar offers optimal autonomy and light power.

Operating Mode	Scoolling
Power supply	12-volt battery or 12-volt battery or 230/12-Volt transformer
Autonomy	468 hours (with batterie 12V 75 A/h) – 160 mA.
Protection	IP 65
Weight	8.00 Kg
Size (L x l x h)	1300 x 100 x 300 mm
Options	Universal mounting with clamps. Power cord extension - 16m
