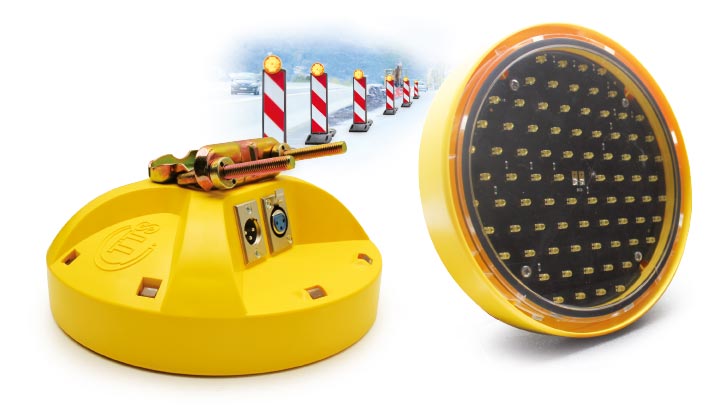

Optic Ø 200 with 80 LEDs • Scrolling • 12 V • Wired connection • with theft-prevention attachment

Ref : 11400

Optic Ø 200 with 80 LEDs • Scrolling • 12 V • Wired connection • with theft-prevention attachment<br />
General information


Self-synchronizing lamps via wired connection.
Ideal for signaling a change in traffic direction.
The scrolling burst is preceded by a double flash synchronized on all lenses.
Each optic connects behind the previous light.


  • Synchronous flash of all optics to promote spatial identification of the bend in all its depth.
  • The optics are protected by a polycarbonate.
  • Increased visibility thanks to 80 LEDs integrated in networks of 5.
  • Self-synchronizing lamps via wired connection.
  • Anti-theft clip.


Technical specifications
focus1

Protected LEDs:

Each optic is equipped with an anti-UV polycarbonate lens, protecting the LEDs from impacts. The IP65 protection rating guarantees adequate protection against humidity and dust
focus2

Low consumption / high light impact:

With its 100% LED optics and its electronics designed to minimize consumption, the optic offers optimal autonomy and light power.
focus3

Easy installation, only one power point:


Each lens is connected behind the previous light via a 15 meter cable equipped with two XLR plugs (provided). Only the first light needs to be connected to the power supply. Power comes from a single source, battery (not included) or mains power.
Operating Mode Double control of the light source. Synchronous flash of all optics to promote spatial identification of the bend in all its depth. Superimposed scrolling sequence with drag effect to mark the curve. 15 optics maximum per bevel.
Power supply 12 V rechargeable battery or 230 V / 12 V power supply / solar or public light
Autonomy 250 hours (for 5 scrolling lenses with 12V 75 Ah rechargeable battery)
Protection IP 65
Weight 2 Kg. (0,9 Kg optic / 1,1 Kg cable)
Size (L x l x h) Ø 222 mm
