TRIANGLE 1000 LIGHTING KIT 3-FLASH • Ø 130/30 LEDs - BATTERY POWER SUPPLY

Ref : 17836

TRIANGLE 1000 LIGHTING KIT 3-FLASH • Ø 130/30 LEDs - BATTERY POWER SUPPLY
General information

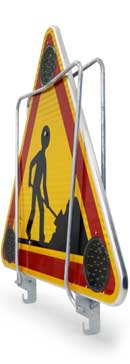

This construction triangle allows the signaling of a road work zone, equipped with 3 high-power Ø130 optics, it effectively secures the supervision of a construction site by being clearly visible. Equipped with the best autonomy on the market, its operating cost is at its lowest. Delivered assembled and wired.

  •  Triangle Anodized aluminum BTR sheet.
  •  Class 2 adhesive.
  •  Galvanized folding foot, compact format.
  •  Standard sign reservation.
  •  Intelligent operating mode available on 4 battery / 2 battery case.
  •  Day/night cell.
  •  3 new generation high power optics Ø 130.
  •  High performance sorted LEDs, long life / low consumption.





Technical specifications
focus1

BTR sheet metal profile and Class 2 adhesive:

Construction site triangle, in anodized aluminum. Its BTR profile (flipped edge) and its material give superior aesthetics and unrivaled durability. Class 2 adhesive, choice depending on use.
focus2

New generation optics:

Triangle equipped with three Ø 130 optics of high power and low consumption. Thanks to the selection of the best components, this new generation of LEDs increases its lifespan while remaining powerful.
focus3

2 battery box:

Control box fixed to the back, in anti-shock ABS, electronics cast in resin and day/night cell. Equipped with RC type connectors (rapid connect), its operation and maintenance do not require any technical knowledge.
focus4

Folding foot:

The panel incorporates an integral, folding and galvanized foot. As standard, lugs are available for installing a sign. 700*200 sign, text of your choice (not supplied).
Operating Mode 3 modes: OFF / H24 / Night trigger Double flash.
Power supply 2 6 V type 4R25 saline or alkaline batteries.
Autonomy 1329 hours with 2 batteries 45 Ah - 50 mA
Protection Optic : IP 67. Housing : IP 53.
Weight 10,2 Kg
Size (L x l x h) 950 x 223 x 950 mm (closed foot)
Options Symbol, accumulateur
