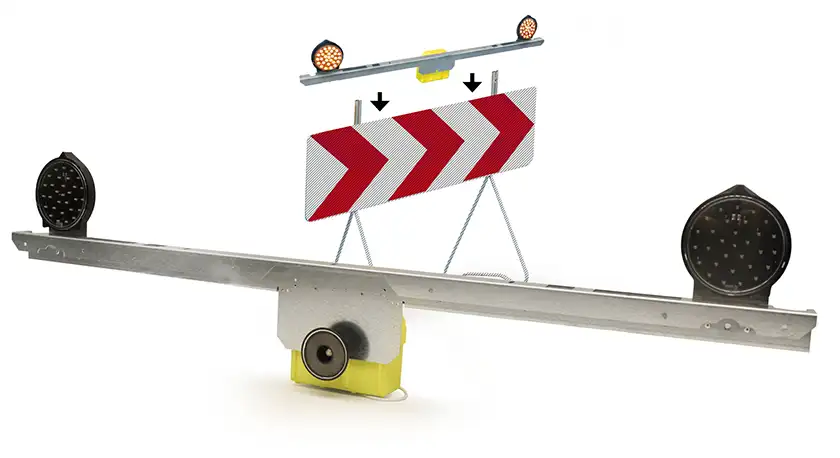

PRE-EQUIPPED BAR FOR METAL SHEET SIGNS • 2 batteries case power supply

Ref : 10044

PRE-EQUIPPED BAR FOR METAL SHEET SIGNS • 2 batteries case power supply
 4-battery housing (batteries not supplied)
General information


The K8 bar allows you to warn of the arrival of a deviation or temporary narrowing of the roadway. Lighting equipment composed of 2 LED optics and a management box. Each Ø 200 optic has 80 high light intensity yellow LEDs, protected by a translucent polycarbonate lens. Activated by a 3-position waterproof switch (24 hours a day, off, night).

  •  The lifespan of an LED is more than 100,000 hours.
  •  A 3-position switch, located on the box, associated with a day/night cell allows you to select the system shutdown.






Technical specifications
 .
Operating Mode 3 modes: OFF / H24 / Night trigger Double flash.
Power supply Two 6 V type 4R25 saline or alkaline batteries (not supplied)
Autonomy 1936 hours with 2 batteries 45 Ah - 30 mA
Protection Optics : IP 67. Housing : IP 53.
Weight 2,7 Kg
Size (L x l x h) 1500 x 300 x 430 mm.
