Power Supplies

2 batteries power supply case • Dual flash mode

Ref : 17129

2 batteries power supply case • Dual flash mode
General information

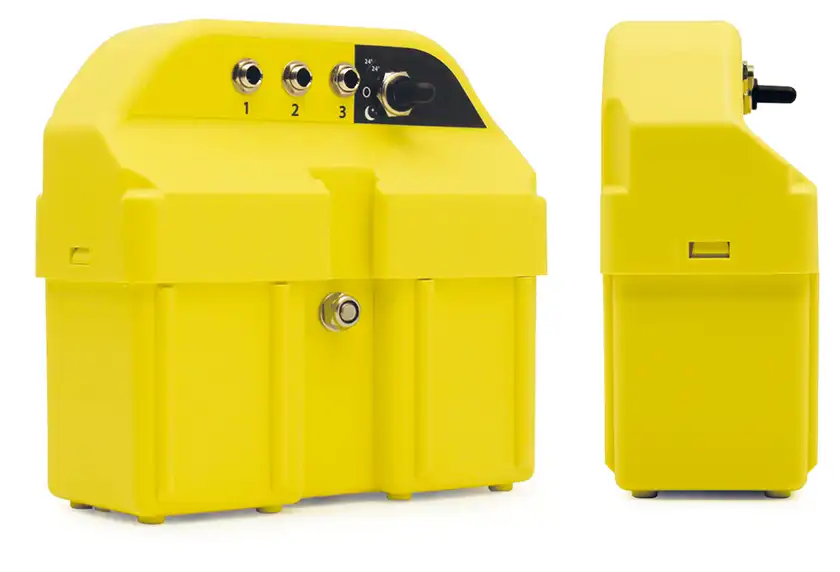

The 2-battery box, in polypropylene, is equipped with three jack sockets, a 3-position switch, a day/night cell and management electronics in double flash mode.

  •  Very low power consumption.
  •  3-position switch: OFF / 24-24h / Night trigger.
  •  Polypropylene housing.
  •  “Jack” type connection.






Technical specifications
Operating Mode Double flash
Power supply two 6-volts battery (type 4R25 saline or alkaline)
Autonomy 5 mA
Protection IP 53
Weight 0.5 kg
Size (L x l x h) 195x184x82 mm
Options Accumulator
Associated products

SALINE BATTERY 6 V 4R25 7 Ah

SALINE BATTERY 6 V 4R25 7 Ah

ALCALINE BATTERY 6 V 4R25 45 Ah

ALCALINE BATTERY 6 V 4R25 45 Ah
