Mobile VMS

MOBILE 12H125 VARIABLE MESSAGE SIGN

Ref : 40099

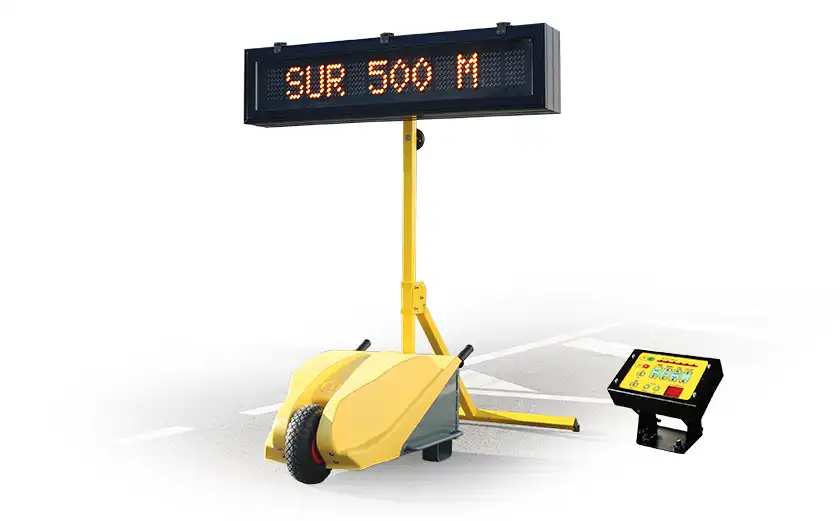

MOBILE 12H125 VARIABLE MESSAGE SIGN
General information


The Variable Message Panel on a mobile trolley precisely informs and signals the road user.
Its flexibility of implementation and its small footprint on the roadway make it possible to adapt to all scenarios.
Supplied with its control box and a complete library of messages, it can easily be supplemented with the messages of your choice.


  •  H125 high visibility display.
  •  Bank of pre-programmed messages.
  •  Alternating on 3 lines.
  •  Mobile and autonomous system.

Technical specifications
focus1

VMS:

  • Matrix display height 125 mm allowing display of up to 12 characters.
  • High performance yellow LEDs 100,000 hours.
  • Read messages up to 60 meters.
focus2

Efficient technology:

  • Key backlighting.
  • Direct access keys (Auxiliaries, Triangle, PMV).
  • PMV 99 pre-programmed messages of 3 alternations.
  • Messages can be modified with the programming software supplied with the set.
  • Update messages via USB port.
  • Rear ball joint attachment.
focus3

Mobile and durable:

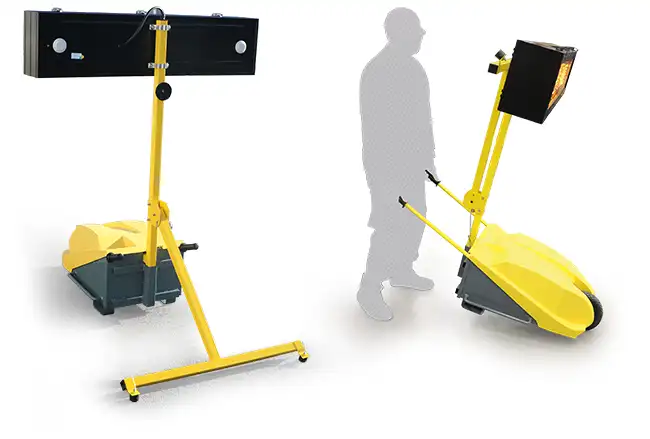

  • The battery box separates from the PMV mast to facilitate transport.
  • Anti-UV protective polycarbonate.
  • Standard matt black RAL paint.
  • Closing the box with three latches.
  • Fixings included.
Operating Mode Fixed or alternate.
Power supply 12-V battery or 230/12 V power supply
Autonomy According to the message displayed
Protection IP 65
Weight 55 Kg
Size (L x l x h) PMV : 1210 x 295 x 220 mm.PMV on mast + battery box: Height: 1533 mm
