General information

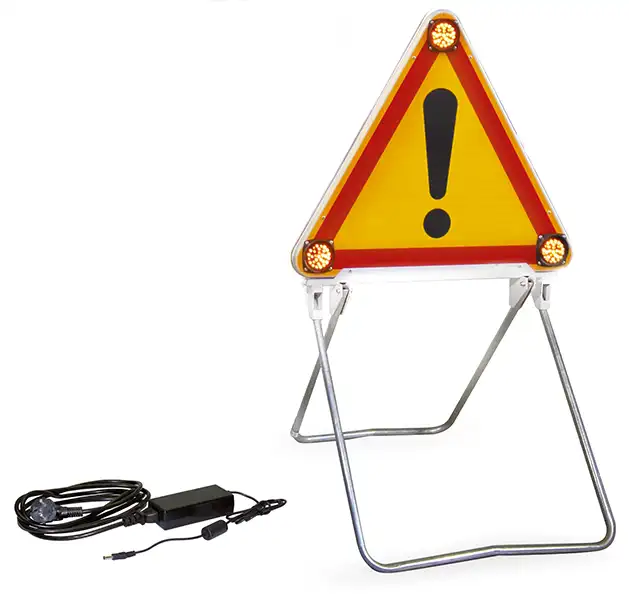

This triangle allows the signaling of an intervention zone on the road, equipped with 3 optics Ø 70 mm and 30 high-power LEDs, it effectively secures the supervision of an intervention in a clearly visible state. With the best autonomy on the market, its operating cost is the lowest. Delivered assembled and wired.
Technical specifications
High visibility:
Each Ø70 optic has 30 high light intensity yellow LEDs, cast in a black polyurethane resin.Waterproof and resistant product:
Thanks to the polyurethane resin, the luminous part avoids corrosion and protects all vibrations. The organization of the wiring of the LEDs in the form of parallel/serial networks (6 networks of 5 LEDs) guarantees very high fault tolerance of the light element (a defective LED only causes the extinction of 1/6 of it). ci). | Operating Mode | Double flash |
| Power supply | NiCd 8.4-V4 Ah battery built into the triangle |
| Autonomy | 35 hours – 50 mA. |
| Protection | Optic : IP 67 |
| Weight | 7 Kg |
| Size (L x l x h) | 660 x 120 x 700 mm (closed foot) |
| Options | Symbol, road sign |
