Lighting triangle 1000 tri-flash Ø 130 with 30 LEDs • Rechargeable battery power supply

Sign Lighting Equipments

Lighting triangle 1000 tri-flash Ø 130 with 30 LEDs • Rechargeable battery power supply

Ref : 20238

General information

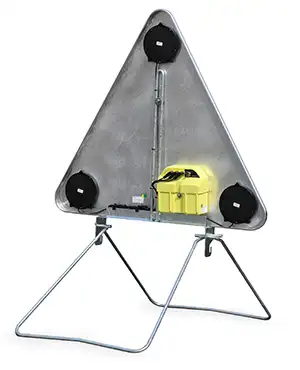

The AK5 construction site triangle is a safety device used to reinforce the visibility of a work zone. Equipped with three Ø 130 mm optics with 30 LEDs, these warning and marking lights allow effective signaling of interventions in progress on the sides of traffic lanes.
A 3-position switch, located on the case, associated with a day/night cell, allows you to select system shutdown, permanent operation or automatic triggering at nightfall.

Very low power consumption.
3-position switch: OFF / 24 hours a day / Automatic activation at nightfall.
Ø 130 optics with 30 LEDs protected by a polycarbonate lens.
Class 2 adhesive.
Foldable tripod.
Pre-equipped with hooks to attach a sign.
Other symbols on request.

Technical specifications

BTR sheet metal profile and Class 2 adhesive:

Construction site triangle, in anodized aluminum. Its BTR profile (flipped edge) and its material give superior aesthetics and unrivaled durability. Class 2 adhesive, choice depending on use.

New generation optics:

Ultra-thin with only 25 mm thickness, it is nonetheless resistant since it is protected by a polycarbonate lens as well as a black ABS body. It does not fear the construction site. Its size fits perfectly into the body of a police panel. Once in place, nothing protrudes.

Efficient technology:

Thanks to LED technology selected to have the best intensity/consumption efficiency and a management box allowing its light power to be adapted according to the ambient lighting, this triflash kit consumes 2 to 3 times less than the others while being much brighter.

Folding foot:

The panel incorporates an integral, folding and galvanized foot. As standard, lugs are available for installing a sign. 700*200 sign, text of your choice (not supplied).

Operating Mode	3 modes: OFF / H24 / Night trigger Double flash.
Power supply	12 V Rechargeable battery (not supplied)
Autonomy	2215hours with a 12 V 75 Ah rechargeable battery - 40 mA
Protection	Optics : IP 67. Housing : IP 53.
Weight	9,90 Kg
Size (L x l x h)	950 x 140 x 950 mm (closed foot).
Options	Symbol
