Accueil (Portail TTS) >Temporary, On-board and Permanant Signals > ROADWORKS SIGNALING > Sign Lighting Equipments > Tri-flash kit Ø 70 with 30 LEDs • Rechargeable battery power supply

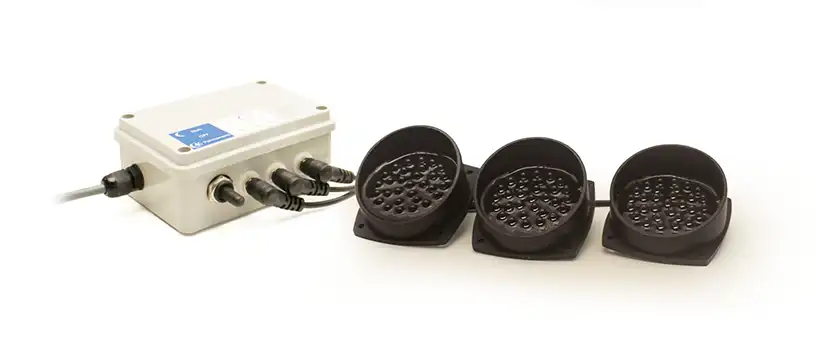

Tri-flash kit Ø 70 with 30 LEDs • Rechargeable battery power supply

Ref : 19602

Tri-flash kit Ø 70 with 30 LEDs • Rechargeable battery power supply
General information


This is a safety device designed to increase visibility in a construction site area. Equipped with three Ø 70 mm optics with 30 LEDs, these warning and marking lights can effectively signal interventions in progress on the sides of traffic lanes.
A three-position switch, located on the housing, associated with a day/night cell, allows you to choose between stopping the system, continuous operation or automatic triggering at nightfall.

  •  Very low power consumption.
  •  3-position switch: OFF / 24-24h / Night trigger.
  •  Ø 70 optics with 30 LEDs.










Technical specifications
focus1

Robust optics designed for the construction site:

Each Ø70 optic has 30 yellow LEDs of high light intensity, cast in a black polyurethane resin. This process makes the light part completely waterproof, avoids corrosion and protects the whole from vibrations.
focus2

Efficient technology:

Thanks to LED technology selected to have the best intensity/consumption efficiency and a management box allowing its light power to be adapted according to the ambient lighting, this triflash kit consumes 2 to 3 times less than the others while being much brighter.
focus3

Easy connection:

With its RC (rapid connect) jack type connector, connecting or changing optics requires no tools, just like replacing batteries.
Operating Mode 3 modes: OFF / H24 / Night trigger Double flash.
Power supply 12 V Rechargeable battery (not supplied)
Autonomy 4183 hours with a 12 V 75 Ah rechargeable battery - 25 mA
Protection Optics : IP 67. Housing : IP 53.
Weight 0,75 Kg
Size (L x l x h) Optic : 75 x 37 x 75 mm – Housing : 149 x 55 x 111 mm.
