Accueil (Portail TTS) >Temporary, On-board and Permanant Signals > ROADWORKS SIGNALING > Sign Lighting Equipments > Tri-flash kit Ø 130 with 30 LEDs • Rechargeable battery power supply

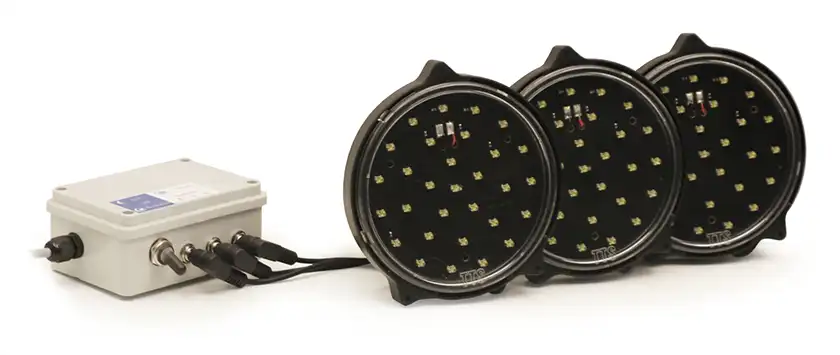

Tri-flash kit Ø 130 with 30 LEDs • Rechargeable battery power supply

Ref : 16891

Tri-flash kit Ø 130 with 30 LEDs • Rechargeable battery power supply
General information


This is a safety device designed to increase visibility in a construction site area. Equipped with three Ø130 mm optics / 30 LEDs, these warning and marking lights make it possible to effectively signal interventions in progress on the sides of traffic lanes.
A three-position switch, located on the housing, associated with a day/night cell, allows you to choose between stopping the system, continuous operation or automatic triggering at nightfall.

  •  Very low power consumption.
  •  3-position switch: OFF / 24-24h / Night trigger.
  •  Ø 130 optics with 30 LEDs protected by a polycarbonate lens.







Technical specifications
focus1

New generation optics:

Ultra-thin with only 25 mm thickness, it is nonetheless resistant since it is protected by a polycarbonate lens as well as a black ABS body. She doesn't fear the construction site.
Its template fits perfectly into the body of a police panel. Once in place, nothing protrudes.
focus2

Efficient technology:

Thanks to LED technology selected to have the best intensity/consumption efficiency and a management box allowing its light power to be adapted according to the ambient lighting, this triflash kit consumes 2 to 3 times less than the others while being much brighter.
focus3

Simplified use:

Power is supplied by connecting a battery (not included) directly to the control box.
Operating Mode 3 modes: OFF / H24 / Night trigger Double flash.
Power supply 12 V Rechargeable battery (not supplied)
Autonomy 2215 hours with a 12 V 75 Ah rechargeable battery - 40 mA
Protection Optics : IP 67. Housing : IP 53.
Weight 1.4 Kg
Size (L x l x h) Optic : 142 x 84 x 142 mm – Housing : 149 x 55 x 111 mm.
