Sign Lighting Equipments

Accueil (Portail TTS) >Temporary, On-board and Permanant Signals > ROADWORKS SIGNALING > Sign Lighting Equipments > Tri-flash kit Ø 70 with 30 LEDs • 2 batteries case power supply

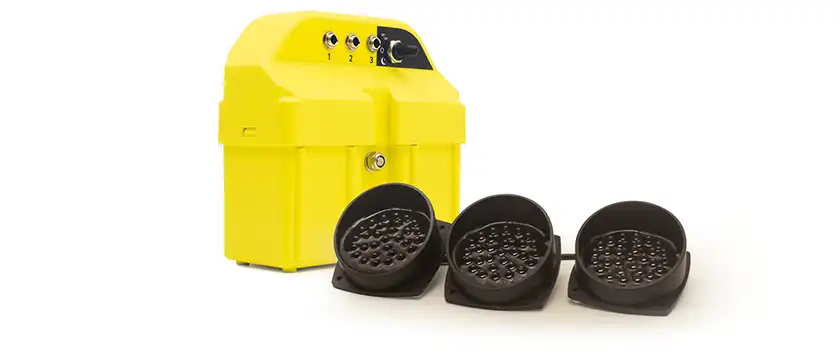

Tri-flash kit Ø 70 with 30 LEDs • 2 batteries case power supply

Ref : 19601

Tri-flash kit Ø 70 with 30 LEDs • 2 batteries case power supply
General information


This is a safety device designed to increase visibility in a construction site area. Equipped with three Ø70 mm optics / 30 LEDs, these warning and marking lights make it possible to effectively signal interventions in progress on the sides of traffic lanes.
A three-position switch, located on the housing, associated with a day/night cell, allows you to choose between stopping the system, continuous operation or automatic triggering at nightfall.


  • Very low power consumption.
  •  3-position switch: OFF / 24-24h / Night trigger.
  •  Ø 70 optics with 30 LEDs.









Technical specifications
focus1

Robust optics designed for the construction site:

Each Ø70 optic has 30 yellow LEDs of high light intensity, cast in a black polyurethane resin. This process makes the light part completely waterproof, avoids corrosion and protects the whole from vibrations.
focus2

Efficient technology:

Thanks to LED technology selected to have the best intensity/consumption efficiency and a management box allowing its light power to be adapted according to the ambient lighting, this triflash kit consumes 2 to 3 times less than the others while being much brighter.
focus3

Easy connection:

With its jack-type RC (rapid connect) connector, connecting or changing the optics requires no tools, just like replacing the batteries.
Operating Mode 3 modes: OFF / H24 / Night trigger Double flash.
Power supply Two 6 V type 4R25 saline or alkaline batteries (not supplied)
Autonomy 2510 hours with 2 batteries 45 Ah
Protection Optics : IP 67. Housing : IP 53.
Size (L x l x h) Optic: 75 x 35 x 75 mm – Housing: 155 x 180 x 175 mm
Associated products

SALINE BATTERY 6 V 4R25 7 Ah

SALINE BATTERY 6 V 4R25 7 Ah

ALCALINE BATTERY 6 V 4R25 45 Ah

ALCALINE BATTERY 6 V 4R25 45 Ah
