Accueil (Portail TTS) >Temporary, On-board and Permanant Signals > ROADWORKS SIGNALING > Sign Lighting Equipments > Bi-flash kit Ø 200 with 80 LEDs • Rechargeable battery power supply

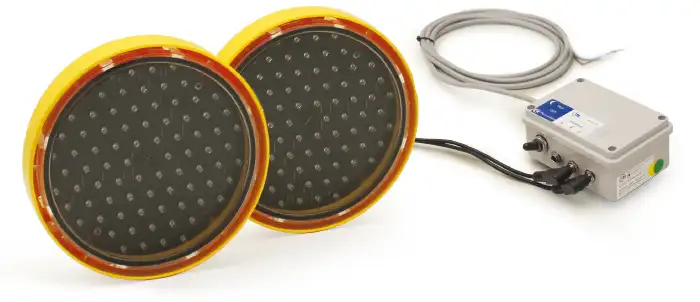

Bi-flash kit Ø 200 with 80 LEDs • Rechargeable battery power supply

Ref : 16894

Bi-flash kit Ø 200 with 80 LEDs • Rechargeable battery power supply
General information


This is a safety device designed to increase visibility in a construction site area. Equipped with three Ø 200 mm optics with 80 LEDs, these warning and marking lights can effectively signal interventions in progress on the sides of traffic lanes.
  •  Very low power consumption.
  •  3-position switch: OFF / 24-24h / Night trigger.
  •  Ø 200 optics with 30 LEDs protected by a polycarbonate lens.






Technical specifications
focus1

Efficient technology:

Thanks to LED technology selected to have the best intensity/consumption efficiency and a management box allowing its light power to be adapted according to the ambient lighting, this biflash kit consumes 2 to 3 times less than the others while being much brighter.
focus2

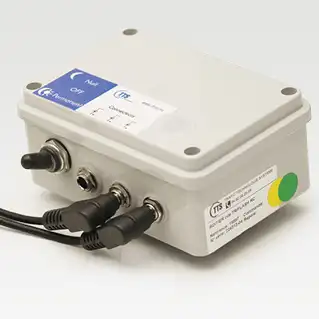

Simplified use:

Power is supplied by connecting a battery (not included) directly to the control box.
Operating Mode 3 modes: OFF / H24 / Night trigger Double flash.
Power supply 12 V Rechargeable battery (not supplied)
Autonomy 1279 hours with a 12 V 75 Ah rechargeable battery
Protection Optics : IP 67. Housing : IP 53.
Weight 2.0 Kg
Size (L x l x h) Optic : Ø 222 mm – Housing : 149 x 55 x 111 mm.
Associated products

BATTERY HOLDER CASE

BATTERY HOLDER CASE

Rechargeable battery 12 V 75 Ah range • integrated acid

Rechargeable battery 12 V 75 Ah range • integrated acid

CHARGER FOR BATTERIES 12 V / 8 A / 96 W

CHARGER FOR BATTERIES 12 V / 8 A / 96 W
