Accueil (Portail TTS) >Temporary, On-board and Permanant Signals > ROADWORKS SIGNALING > Sign Lighting Equipments > Bi-flash kit Ø 200 with 80 LEDs • 2 batteries case power supply

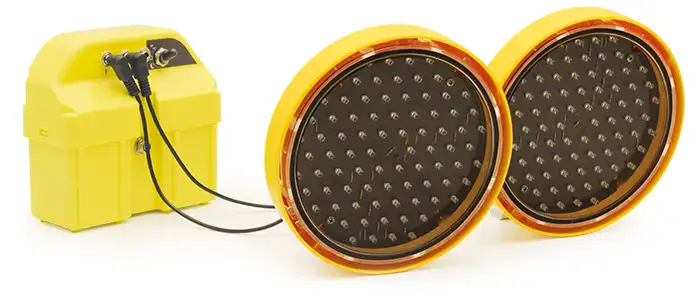

Bi-flash kit Ø 200 with 80 LEDs • 2 batteries case power supply

Ref : 16893

Bi-flash kit Ø 200 with 80 LEDs • 2 batteries case power supply
General information


This is a safety device designed to increase visibility in a construction site area. Equipped with two Ø 200 mm optics with 80 LEDs, these warning and marking lights can effectively signal interventions in progress on the sides of traffic lanes.

  •  Very low power consumption.
  •  3-position switch: OFF / 24-24h / Night trigger.
  •  Ø 200 optics with 30 LEDs protected by a polycarbonate lens.








Technical specifications
focus1

Efficient technology:

Thanks to LED technology selected to have the best intensity/consumption efficiency and a management box allowing its light power to be adapted according to the ambient lighting, this biflash kit consumes 2 to 3 times less than the others while being much brighter.
focus2

Simplified use:

With its RC (rapid connect) jack type connector, connecting or changing optics requires no tools, just like replacing batteries.
Operating Mode 3 modes: OFF / H24 / Night trigger Double flash.
Power supply Two 6 V type 4R25 saline or alkaline batteries (not supplied)
Autonomy 767 hours with 2 batteries 45 Ah - 65 mA
Protection Optics : IP 67. Housing : IP 53.
Weight 2.70 Kg
Size (L x l x h) Optic : Ø 222 mm – Housing : 155 x 180 x 175 mm.
Options Accumulateur
Associated products

SALINE BATTERY 6 V 4R25 7 Ah

SALINE BATTERY 6 V 4R25 7 Ah

ALCALINE BATTERY 6 V 4R25 45 Ah

ALCALINE BATTERY 6 V 4R25 45 Ah
