Short Stop Terminal

SHORT STOP TERMINAL


SHORT STOP TERMINAL<br />
General information
In our saturated cities, short stops without constraints, managed by the TTS terminal.
In public spaces where available parking is very limited, the short stop terminal allows parking for a limited period which can be programmed for up to 20 minutes.
It can be adapted to match the characteristics of the parking location.

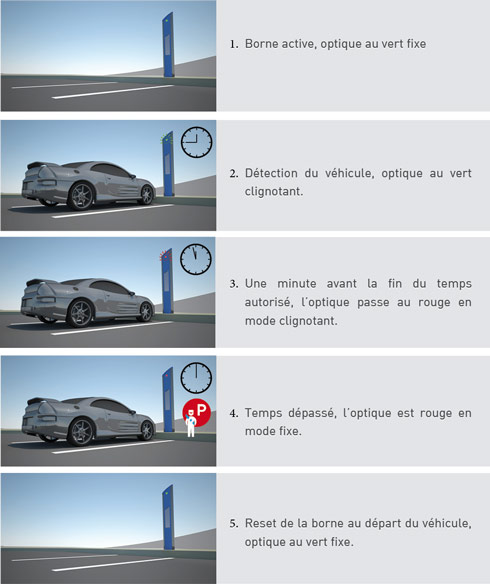

The fixed red light indicates that the allowed time has elapsed and that a parking fine can be issued.

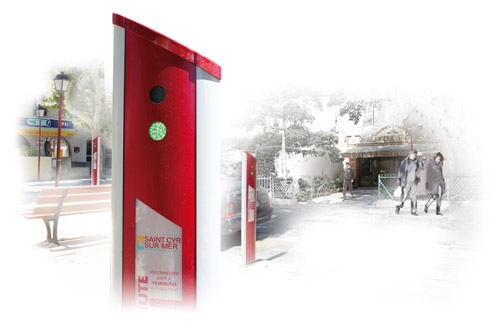

Having the shape of a column, it includes detection and management devices. The elegant design allows for multiple applications, in both modern urban contexts and traditional historic architectural sites.

The  detection and management system does not require complex programming. With a single setting requiring no adjustments, the desired parking time is easily set either in the factory or by the client themselves.

The short-stay TTS terminal is equipped with the latest design of electromagnetic detector.
In addition, the terminals are powered by a very-low voltage supply, allowing safe and simple connection by cutting through paving, with no trench -work required.

Technical specifications




Operating Mode Indique le dépassement du temps autorisé par une optique rouge fixe.
Power supply 230-Volt or public lighting
Autonomy Simple place : 100 mA / 12Vdc –Double place : 200 mA / 12Vdc
Protection IP 66
Size (L x l x h) 326 x 116 x 1800 mm
Options Timer, information transmission by SMS, RS485 link
