Housings 700 x 250 Display 125mm

Entrance Housings

Ref : 56116

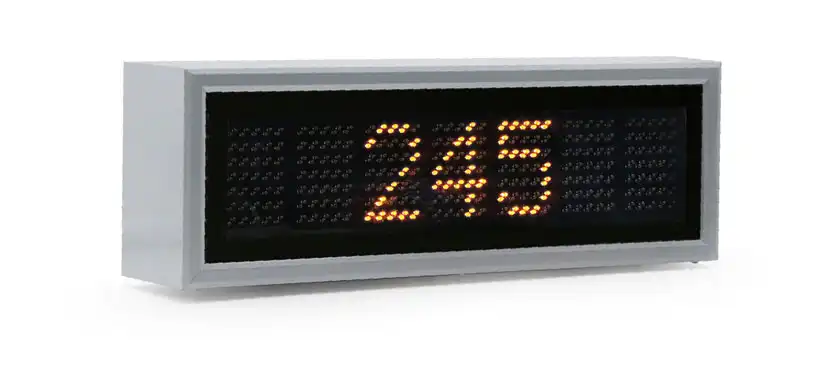

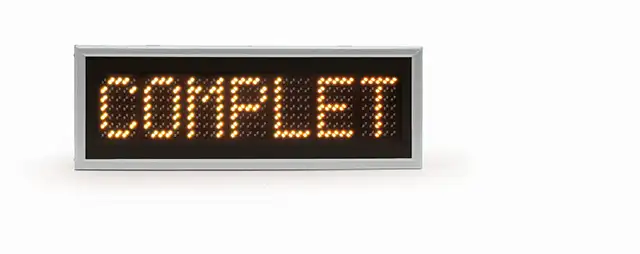

Aluminum parking entrance box measuring 700 x 250 mm, with LED displays, height 125 mm, 7 characters, 2 LEDs per point, protected by front panel.

Lacquered aluminum profile, 700 x 250 mm.
Single sided.
Front panel in 3 mm colorless anti-reflective polymethyl methacrylate.
Rear panel in 30/10e aluminum with fixing rails.
Variable message display 125 mm high 2 LEDs per amber color point 7 characters.
30° 2750mcd LEDs.
Management terminal integrated in the box.
IP, RS485, RS232, RS422 command on protocol to be defined + 3 priority contact inputs.
Brightness management by day/night cell.

Options:

Aluminum mast diameter 90 mm or 114 mm x 3 m with anchoring kit and connection box.
Surge arrester 20 kA.
Forced ventilation with filters.
RAL on request.
