Entrance Housings

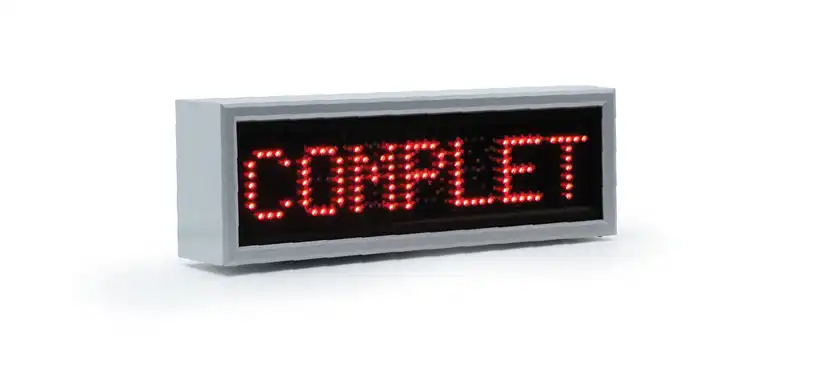

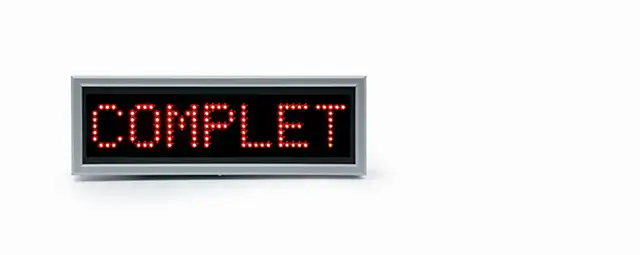

HOUSIGNS 600 x 200 mm 90 mm three-text display

Ref : 54001

HOUSIGNS 600 x 200 mm 90 mm three-text display
General information
Aluminum parking entrance box measuring 600 x 200mm, with fixed LED messages height 90 mm, protected by front panel.





Technical specifications
  • Lacquered aluminum profile 600 x 200 mm.
  •  Single sided.
  •  Front panel in colorless, anti-reflective 3 mm polymethyl methacrylate.
  •  Rear panel in 30/10e aluminum with fixing rails.
  •  Fixed message display FREE / COMPLETE / CLOSED 90 mm high, green/red colors.
  •  LEDs 30° 4000 mcd.
  •  Management terminal integrated into the box.
  •  Control by dry contact or RS485 on protocol to be defined.
  •  Brightness management by day/night cell.

Options:
  •  Other texts on request 1 to 3 texts up to 7 characters.
  •  Possible display colors: green / red / amber / white / blue.
  •  Aluminum mast Ø76 length 2900 mm + 2 collars REF 60259.
  •  Aluminum mast Ø90 length 2900 mm + inspection hatch + 6 A fuse + 2 clamps REF 56110.
  •  20 kA surge protector.
  •  RAL on request.
Power supply 230 VAC
Autonomy 60 W
Thickness 127 mm
Size (L x l x h) 600 x 200 x 127 mm
