Standardised Dynamic Car Park Guidance Systems

Accueil (Portail TTS) >Parking Systems Signalling > Dynamic Car Park Guidance Systems > Standardised Dynamic Car Park Guidance Systems > Dynamic Car Park Guidance Systems set - Rounded Corners Box - Certified Range 1600 x 400 mm - Rectangle

Dynamic Car Park Guidance Systems set - Rounded Corners Box - Certified Range 1600 x 400 mm - Rectangle


Dynamic Car Park Guidance Systems set - Rounded Corners Box - Certified Range 1600 x 400 mm - Rectangle
General information


Providing motorists with real-time information enabling them to find an available parking space as efficiently as possible is to sum up in a few words the concept of the dynamic parking staking system. Present from the outset, with hundreds of panels installed in France and abroad, TTS is one of the key players in this field.

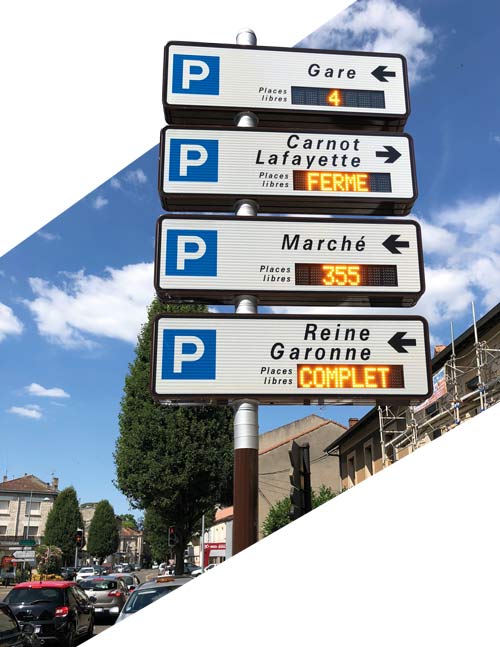

Our dynamic rounded corner signs in rectangle format are made from certified directional street furniture, into which we integrate our range of displays, which is itself certified. You thus benefit from a double guarantee of quality both in terms of furniture and display.

Ideal compromise for easy installation on greasy roads with its small width of 1600mm, this format nevertheless allows optimal readability in a 30 or 50Km / h greasy zone with a dynamic display of 125mm height.





Technical specifications
Furniture:
  • Box dimension: 1600 x 400 mm
  • Number of boxes: 1 to 6
  • Material: aluminum
  • Front / rear face: Aluminum
  • Maintenance: Rear door
  • Support pole: Aluminum
  • Mast diameter (mm): 114/140/168
  • Assembly: Through
  • Finish: RAL of your choice
  • Height under panel: 2m30
  • Fixing: Crosses Ø22mm

Display:
  • Height: 125 mm
  • Readability distance: 50 m
  • Number of characters: 3 to 7
  • Number of LEDs per point: 2
  • Matrix: 5 x 7
  • Color: Amber (590 nm)
  • Viewing angle: 30 °
  • Brightness: 5.5 cd
  • Management card: GAU2
  • Brightness management: D / N cell
  • Operating temperature: -25 ° to + 50 °

Control:
  • Supervision: DEDALE
  • Connection: IP / Radio / 3G / 4G

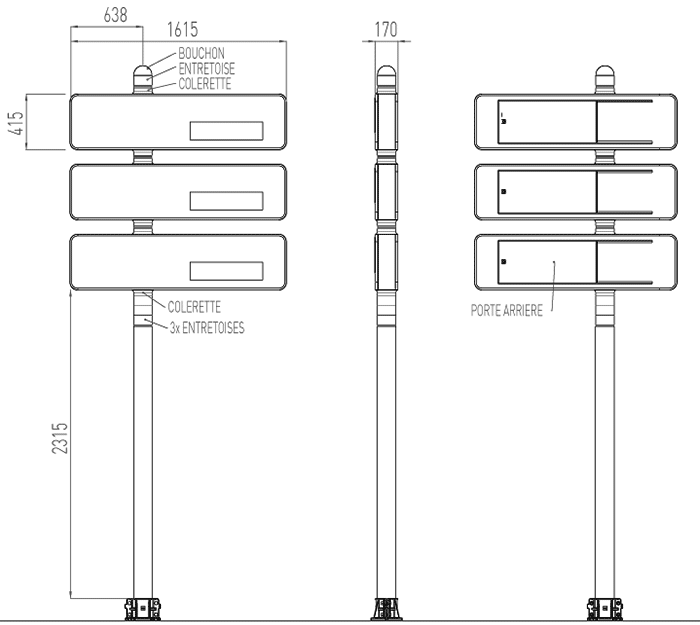

plan-c1600x400-3caissons-tts
