Traffic will vary according to the site and the specific conditions that are associated with it. The use of non-permanent police signs is recommended in situations where signs only have to display a limited number of symbols. They increase the vigilance of drivers who are confronted with a highly visible change in their usual journey.

Signs dimensions

TTS has a family of police signs of unequalled quality and robustness for effective displays of signals.

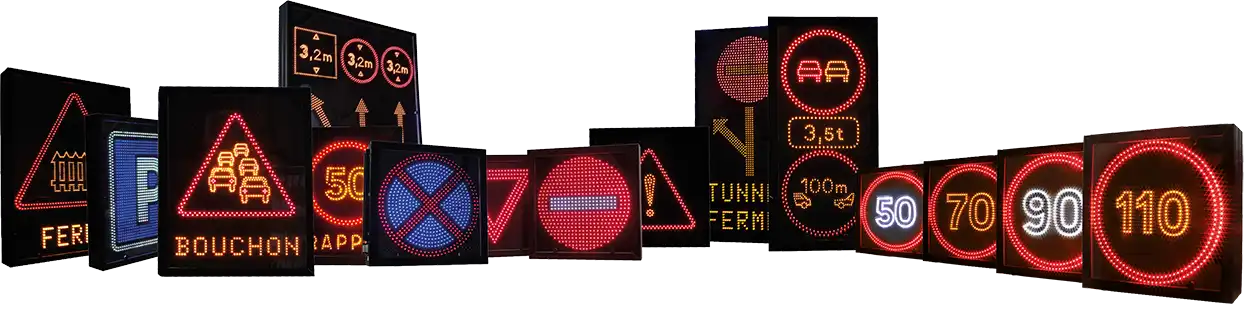

All categories of signs are available. These are mainly:

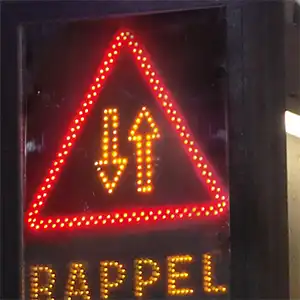

- Danger and Intersection signs (type A).
- Prohibition signs (type B).
- Information signs (type C).

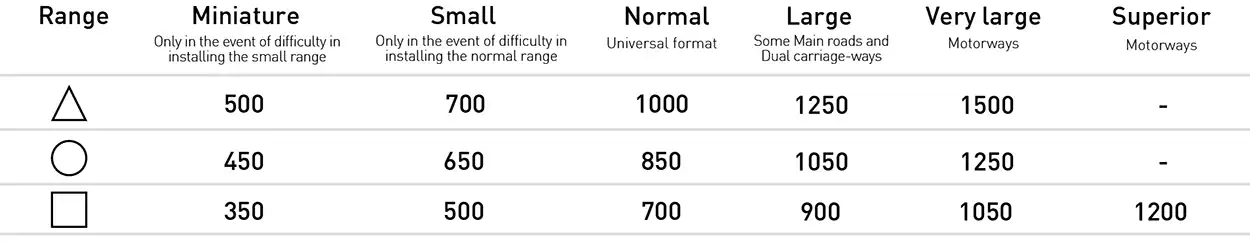

These are available in standard sizes (Ranges): Miniature / Small / Normal / Large / Very Large / or Special.

In compliance with CE standard NF EN 12966-1, our panels are entirely composed with LEDS which image the symbol and the strip without any printing. It means that the road sign appears when the panel is turn on and that only the black background is visible when it is turned off.

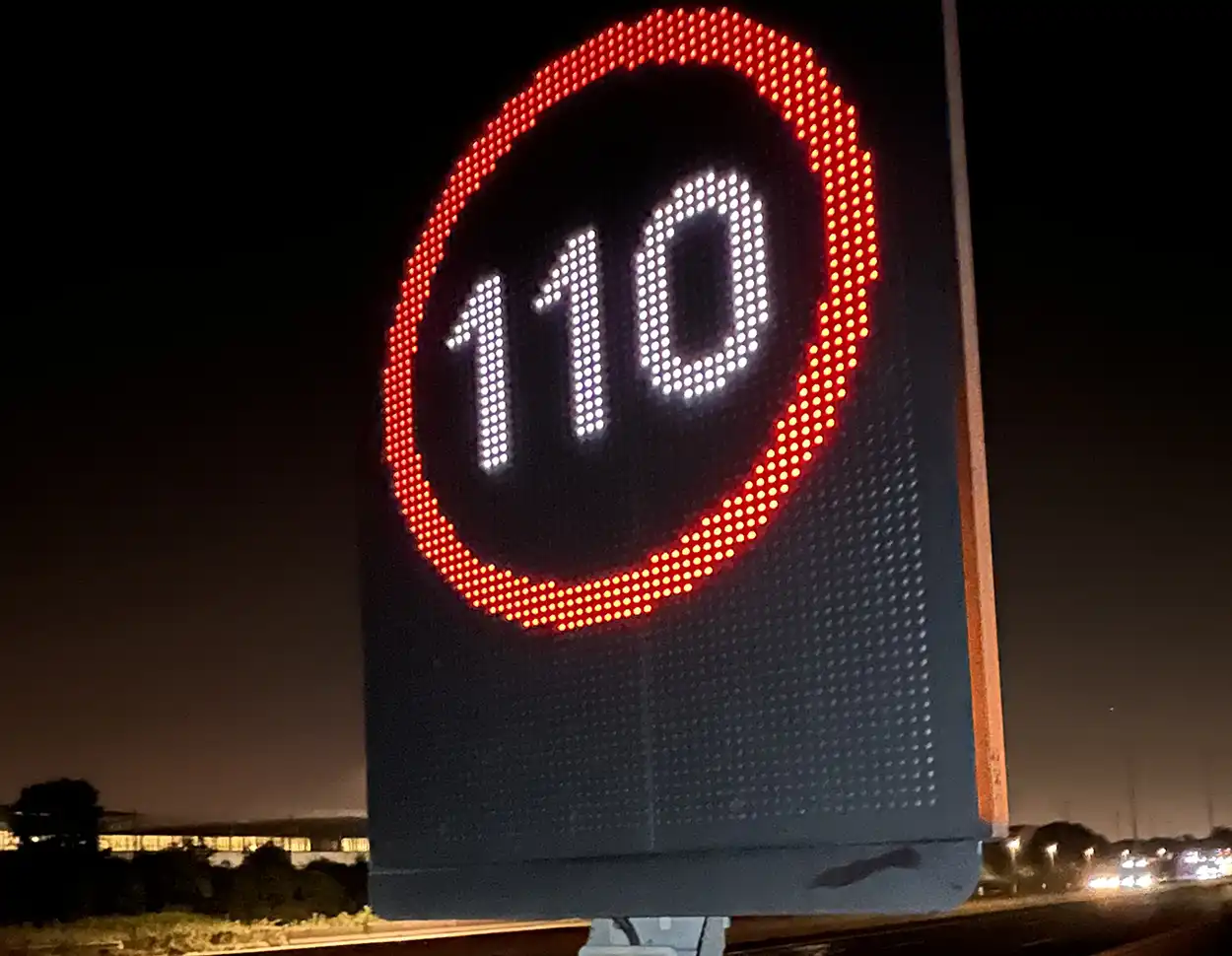

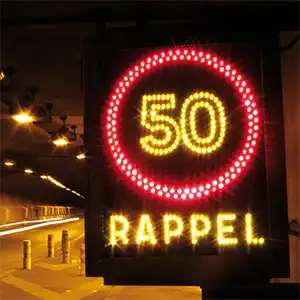

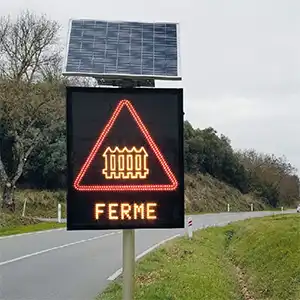

The use of such panel is particularly recommended to attract and increase the attention of drivers on roads and motorways.

Non-permanent display signs

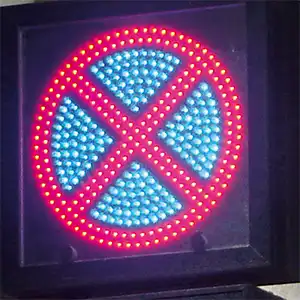

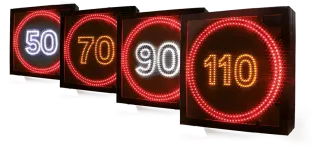

Our dynamic police signs are made up of LEDs which make up the entire outer margin and the symbol, without including printing.
Comprised solely of LEDs on a black background, nothing is shown on the sign when it is switched off.
They are then switched on as and when conditions require it.

PANNEAUX DE POLICE DYNAMIQUES - CATEGORIE A et B

The dynamic police panel is made up of a 190mm thick aluminum profile box, which can be opened from the front, assisted by a gas spring. The latter is made from UV-treated polycarbonate.The panel is closed by waterproof compression latches. The box is finished using black epoxy paint as...

CORRESPONDENCE OF RANGES / DIMENSIONS OF BOXES

**DYNAMIC & REINFORCED TRAFFIC SIGNS - TYPE A**
Range	Dimension (mm) - Box Size
Triangle 500 – Miniature range	650 x 650
Triangle 700 – Small Range	850 x 850
Triangle 1000 – Normal Range	1050 x 1050
Triangle 1250 – Gamme Grande	1300 x 1300
Triangle 1500 – Very Large Range	1600 x 1600

ADDITIONAL LINES AVAILABLE ON REQUEST.

**DYNAMIC & REINFORCED TRAFFIC SIGNS - TYPE B**
Range	Dimension (mm) - Box Size
Rond Ø450 – Miniature range	650 x 650
Rond Ø650 – Small Range	850 x 850
Rond Ø850 – Normal Range	1050 x 1050
Rond Ø1050 – Large range	1300 x 1300
Rond Ø1250 – Very Large Range	1600 x 1600

ADDITIONAL LINES AVAILABLE ON REQUEST.

**DYNAMIC & REINFORCED TRAFFIC SIGNS - TYPE C**
Range	Dimension (mm) - Box Size
Carré 350 – Miniature range	450 x 450
Carré 500 – Small Range	600 x 600
Carré 700 – Normal Range	800 x 800
Carré 900 – Large range	1000 x 1000
Carré 1050 – Very Large Range	1100 x 1100

**DYNAMIC & REINFORCED TRAFFIC SIGNS - TYPE J4**
Range	Dimension (mm) - Box Size
J4 400*400 - 1 Chevron	500 x 500
J4 800*400 - 2 Chevrons	900 x 500
J4 1200*400 - 3 Chevrons	1300 x 500

OTHER RANGES AVAILABLE ON REQUEST.

**DYNAMIC & REINFORCED TRAFFIC SIGNS - TYPE J5**
Range	Dimension (mm) - Box Size
J5 500	600 x 600
J5 700	800 x 800
J5 900	1000 x 1000
